AeroSense-UWS
Ultrasonic wind speed and direction sensor with no moving parts, fast response, ±2.5° direction accuracy, and a long service life.
AeroSense-UWS measures wind speed and direction from variations in ultrasonic propagation time through the airflow. With no moving parts to wear out, the sensor offers fast response, high accuracy, and long service life — well-suited to meteorology, environmental monitoring, and wind-turbine control.
No Moving Parts
Ultrasonic measurement eliminates mechanical wear.
0-75 m/s Range
Wide wind speed range with ±0.5 m/s or ±3% accuracy.
Fast Response
High sample rate captures gust events and rapid transitions.
Wide Environment
-40 to +60 °C standard, with -55 to +70 °C configurable.
No Moving Parts
Ultrasonic time-of-flight measurement removes mechanical wear.
Fast Response
High sample rate captures gusts and rapid wind transitions.
High Accuracy
±0.5 m/s or ±3% of reading across the full 0-75 m/s range.
Wide Environment
-40 to +60 °C standard, with -55 to +70 °C configurable.
Open Protocols
RS485 with NMEA-0183; ASCII, Modbus RTU, SDI-12 selectable.
Compact & Light
168 mm tall, 140 mm OD for mast, pole, or buoy integration.
Overview
AeroSense-UWS derives wind speed and direction from the variation of ultrasonic propagation time across the airflow. The non-contact, inertia-free measurement gives the sensor fast response, high accuracy, no mechanical wear, and a long working life — useful where moving-parts anemometers would degrade over time.
Typical applications include meteorological observation, environmental monitoring, and wind-turbine control. The sensor outputs NMEA-0183 over RS485 by default and supports a number of optional digital and analog protocols for direct integration with telemetry and SCADA systems.

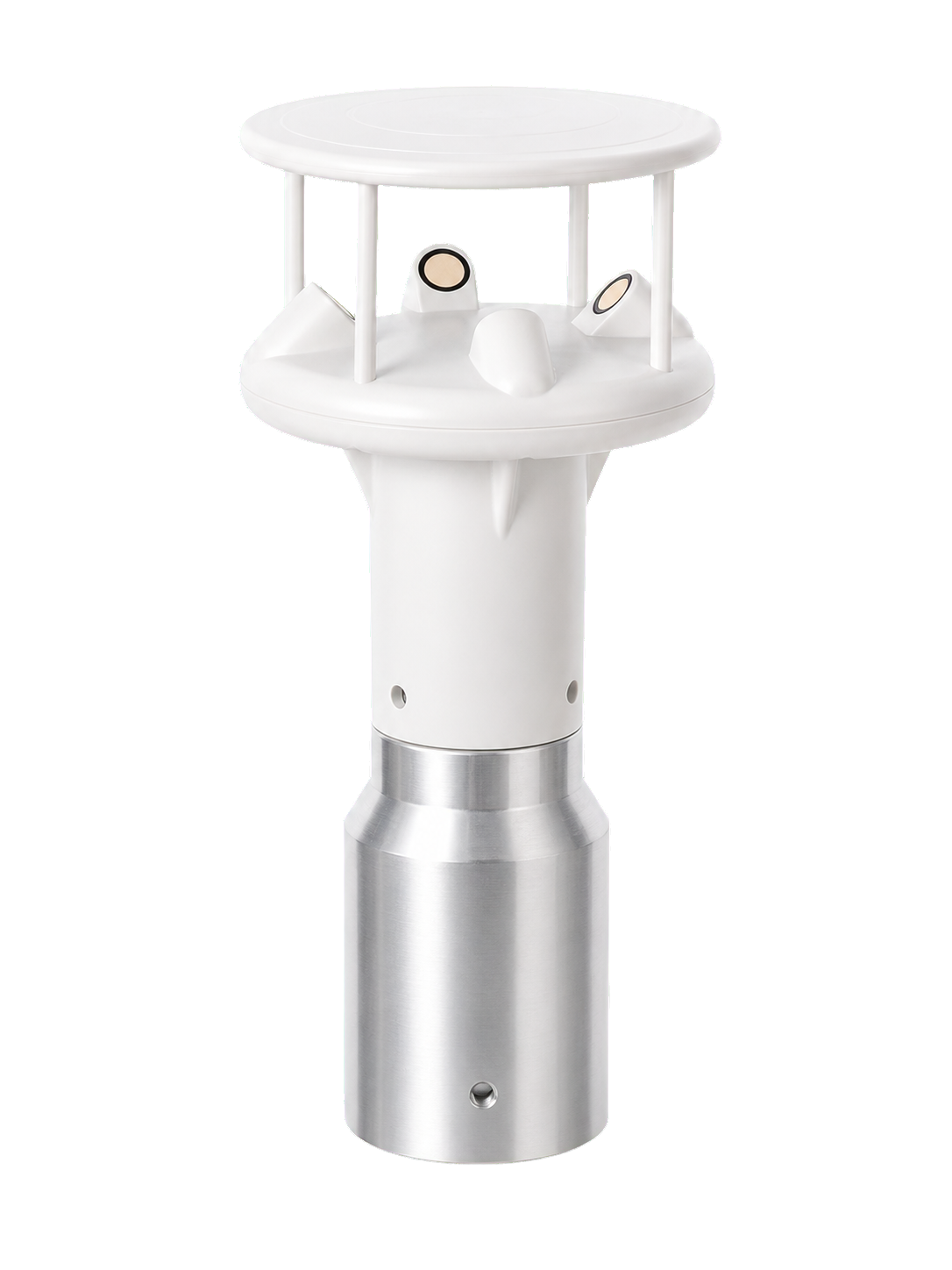

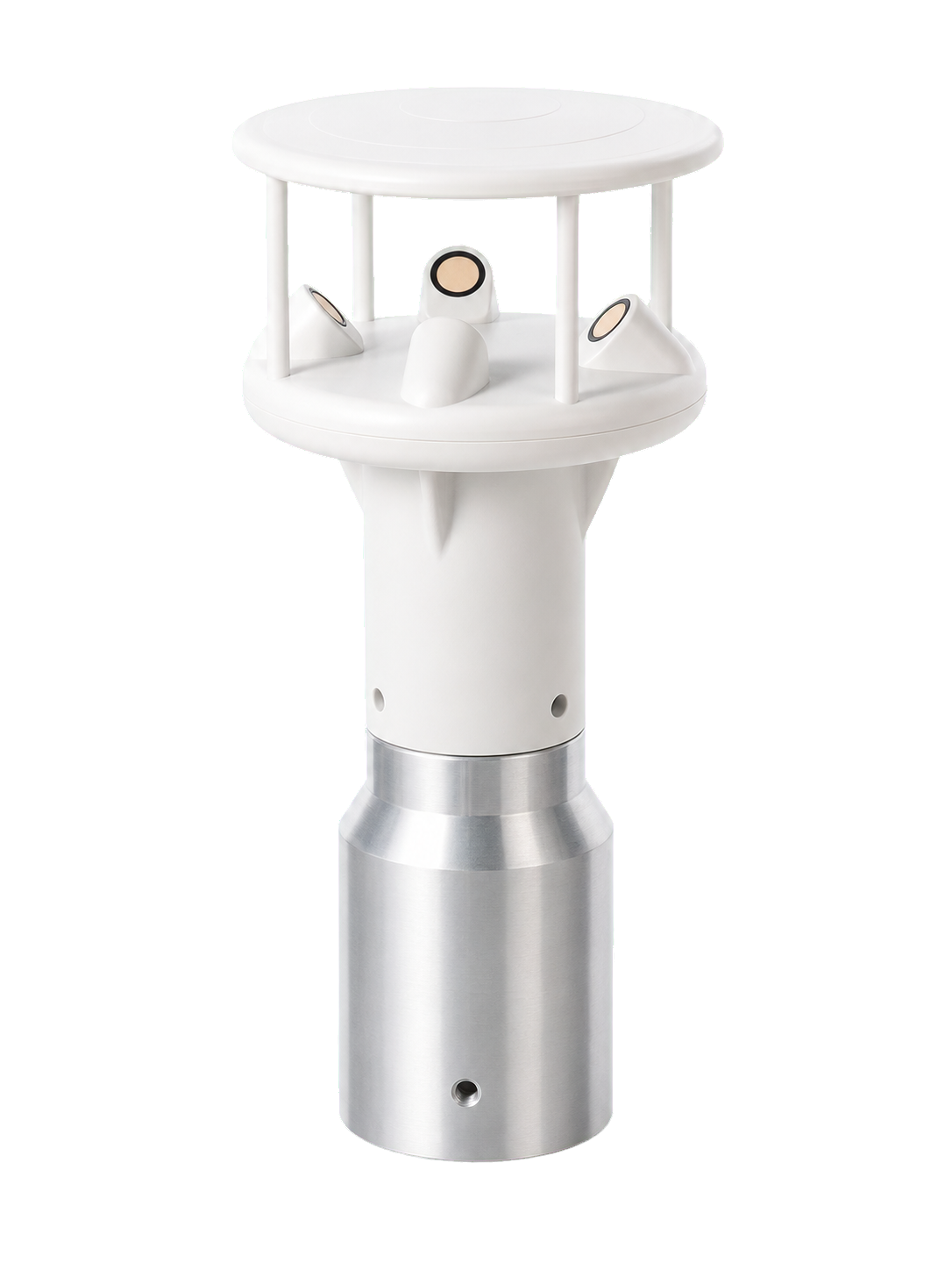

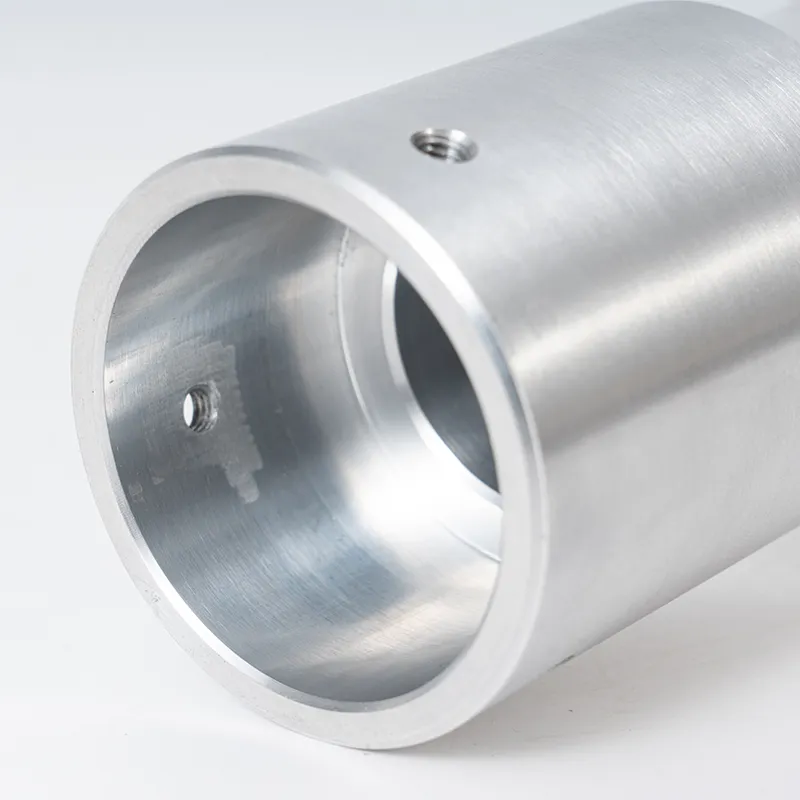

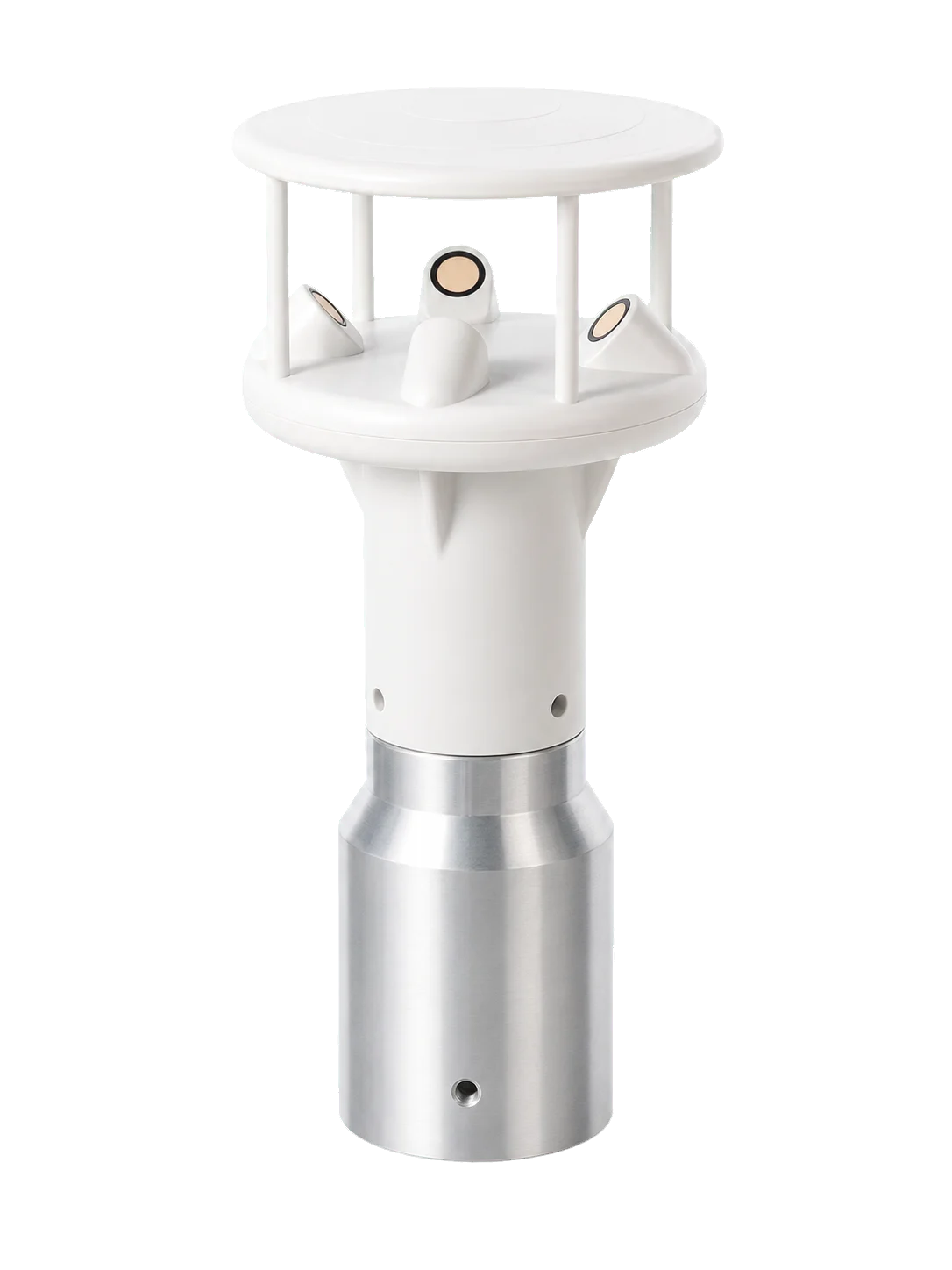

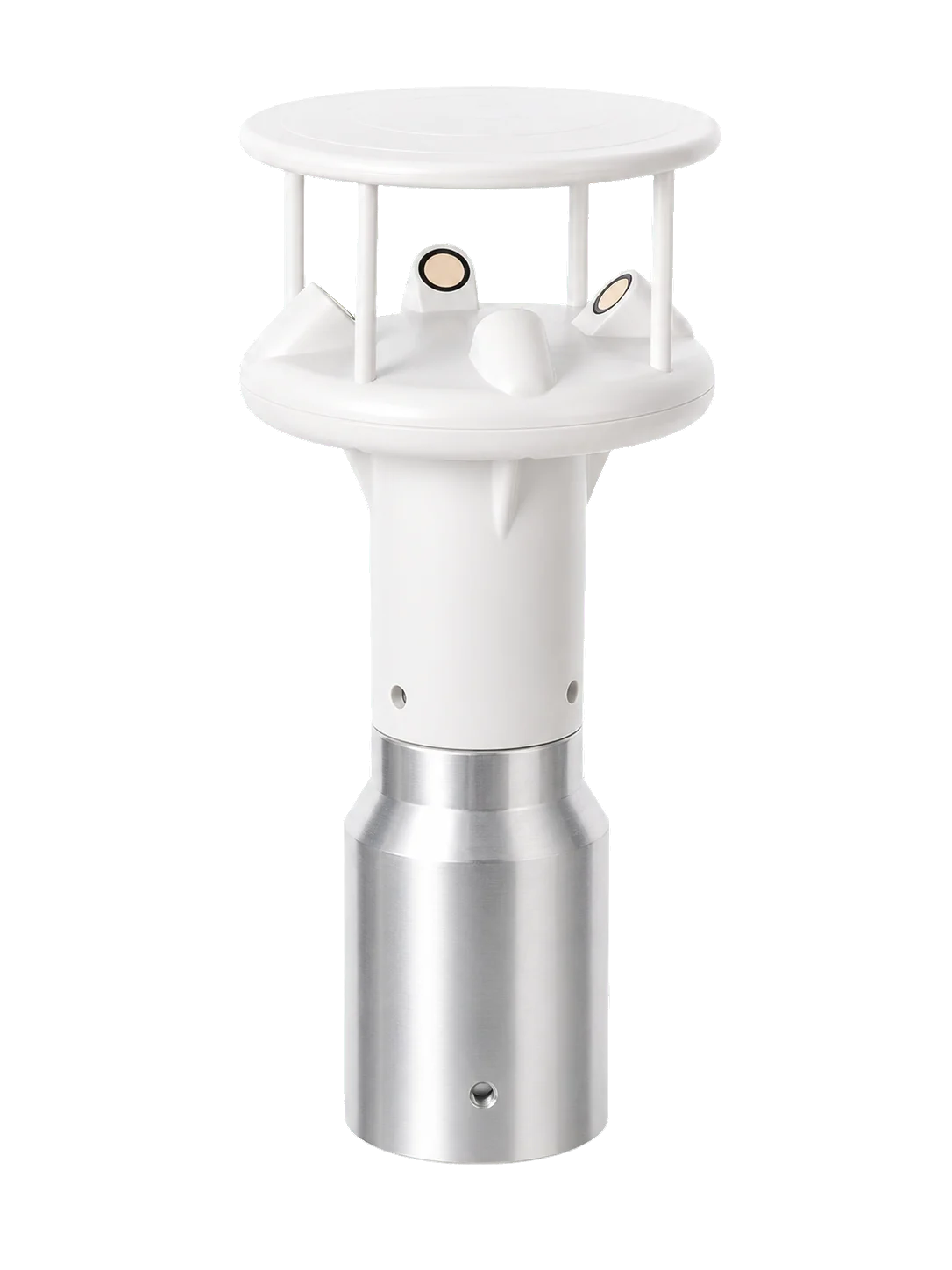

Product Images
Key Specifications
View Full SpecificationsSupported Parameters
Measured Parameters
Output Options
Power
Environmental
Resources
Product Datasheet
Specifications, configurations, and deployment ratings for project planning.
Request PDFIntegration Guide
Wiring, protocol notes, and mounting guidance for platform integrators.
Email SupportCalibration & Maintenance
Recommended verification, calibration, and servicing workflow.
Get ChecklistAccessories
Mounting Kit
Standard sleeve flange and pole-mount hardware for fast installation.
Cable & Junction Box
Weatherproof cabling and junction options for field wiring.
Protocol Conversion
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Support
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
