AeroSense-Mini60
Compact propeller wind speed and direction sensor (0-60 m/s) with NMEA-0183 output, IP66 body, and CMA / CNAS certifications.
AeroSense-Mini60 is a lightweight propeller-style wind speed and direction sensor that delivers horizontal wind data for marine, transportation, and renewable-energy meteorology. The compact 0.6 kg AAS body is rated to IP66 and configurable across RS485, NMEA, Modbus RTU, CAN, SDI-12, and analog outputs.
0-60 m/s Range
Standard wind speed range with ±0.3 m/s accuracy.
Compact 0.6 kg Body
Lightweight AAS housing measures only 373 × 327 mm.
±3° Direction Accuracy
Precise wind direction with 1° resolution.
CMA & CNAS Certified
Includes lab-issued accuracy, temperature, and salt-spray test reports.
Propeller Design

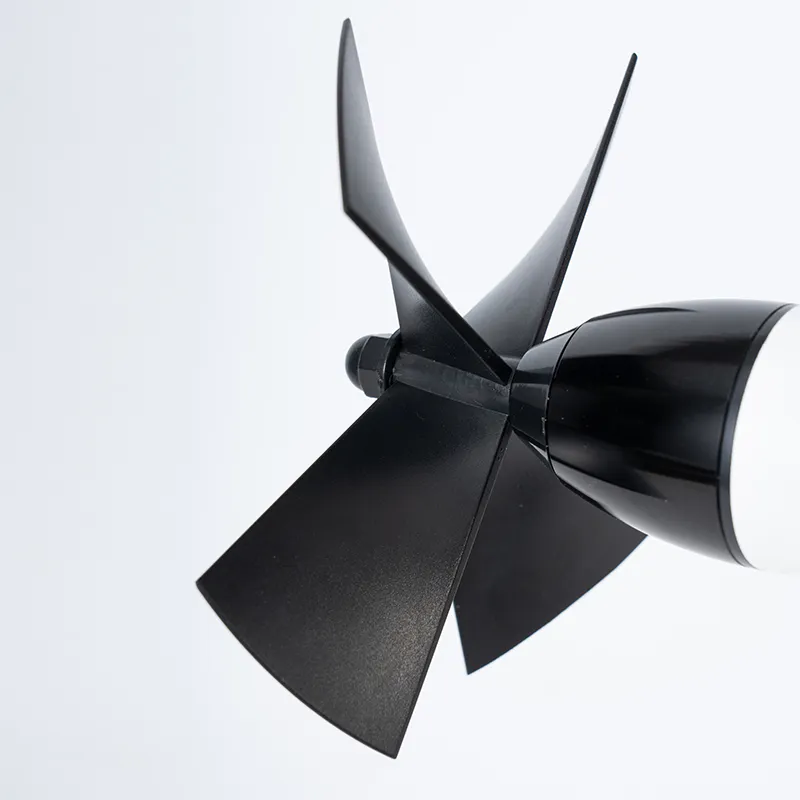

Aerodynamic propeller and tail wing for fast wind speed and direction response.
Marine Grade
UV- and oxidation-resistant AAS plastic body resists yellowing and fatigue.
Standard Protocols
RS485 with NMEA-0183 by default; analog, Modbus RTU, CAN, SDI-12 optional.
Wide Configurability
Mode signal, NMEA, ASCII (Vaisala compatible), CAN (ASCII) options available.
Long Service Life
Engineered for 50 million revolutions of continuous service.
Easy Mounting
Standard sleeve flange or pole mounting for stations, masts, and buoys.
Overview

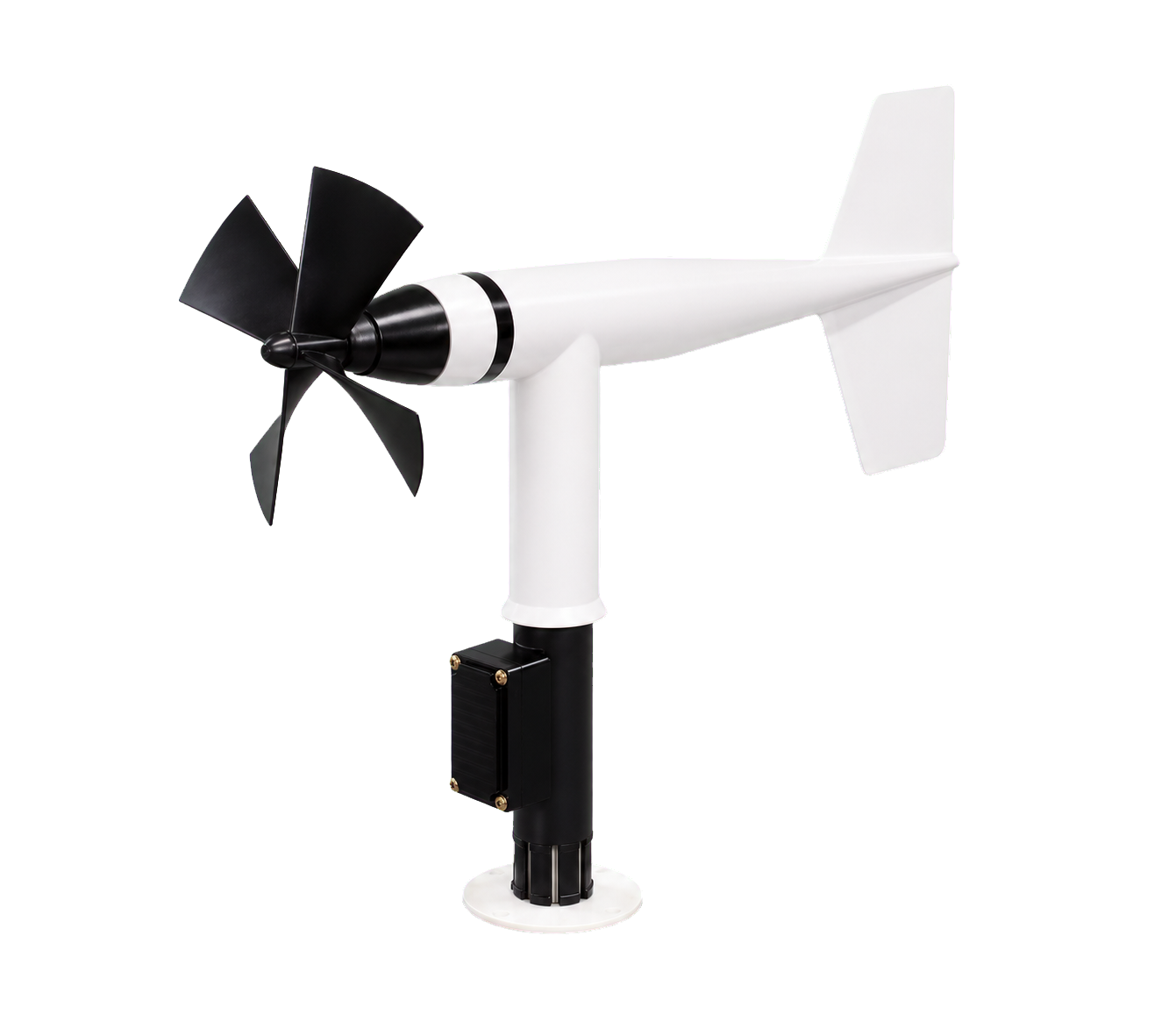

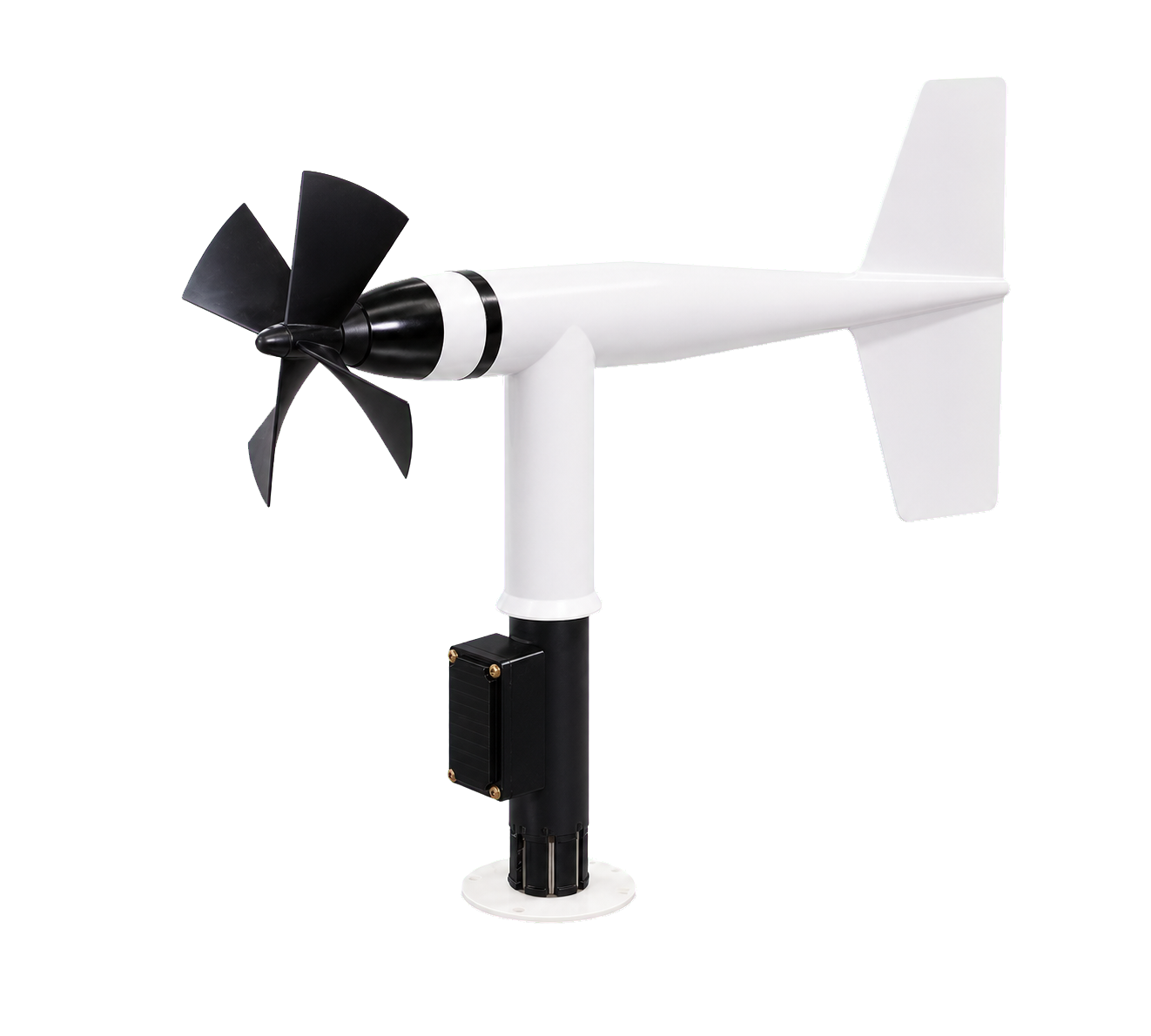

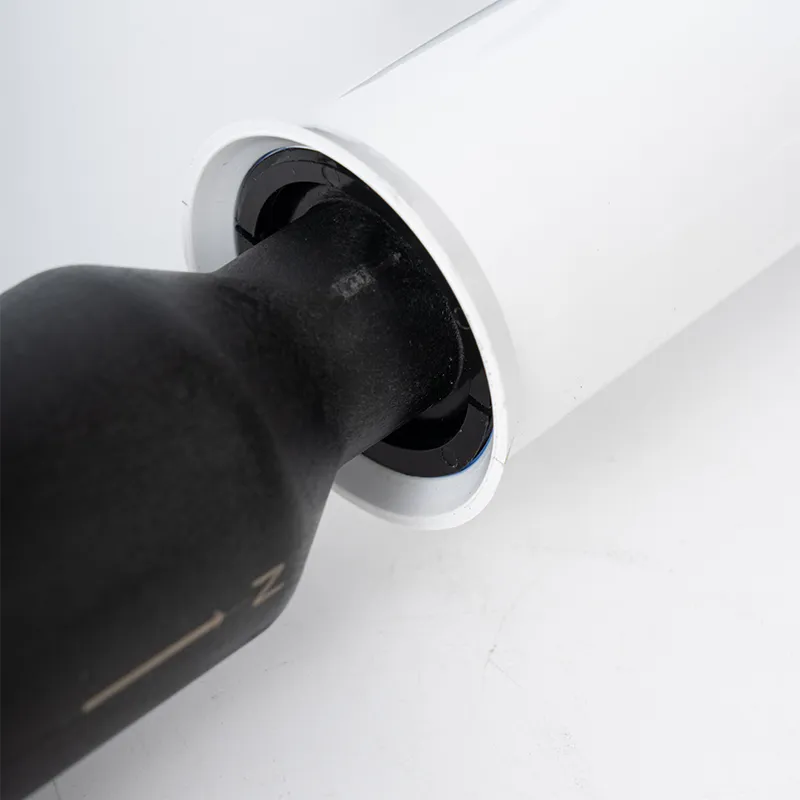

AeroSense-Mini60 is a compact propeller wind sensor used to measure horizontal wind speed and wind direction. The integrated assembly combines a tail vane, propeller, head cone, wind-speed shaft, mounting post, and junction box in a small AAS plastic body that resists UV light and oxidation for long outdoor service.
Its small form factor and low weight make it well-suited to coastal stations, vessels, wind farms, transportation meteorology, and research observatories. The sensor ships with NMEA-0183 over RS485 by default and supports a wide variety of optional protocols for direct integration into existing data acquisition systems.
Product Images
Key Specifications
View Full SpecificationsSupported Parameters
Measured Parameters
Output Options
Power Options
Environmental
Resources
Product Datasheet
Specifications, configurations, and deployment ratings for project planning.
Request PDFIntegration Guide
Wiring, protocol notes, and mounting guidance for platform integrators.
Email SupportCalibration & Maintenance
Recommended verification, calibration, and servicing workflow.
Get ChecklistAccessories
Mounting Kit
Standard sleeve flange and pole-mount hardware for fast installation.
Cable & Junction Box
Weatherproof cabling and junction options for field wiring.
Protocol Conversion
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Support
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
