WaveSense-R
Non-contact radar wave sensor for continuous wave, direction, and tide monitoring.
WaveSense-R uses radar ranging and high-frequency pulse processing to measure sea-surface motion without contact, supporting stable wave and tide observations in harsh offshore conditions.
Non-Contact Sensing
Radar measurement avoids water contact and reduces maintenance exposure.
Wave + Tide Output
Captures wave height, period, direction, and tide level in one system.
Platform Ready
Supports RS232, RS485, and Ethernet for marine telemetry integration.
0-30 m Wave Range
Covers coastal and offshore wave monitoring use cases.
0.25 s Sampling
Fast pulse interval supports stable sea-state processing.
Tide Monitoring
Measures tide level with 0.03 m accuracy.
32 GB Storage
Integrated long-term data buffering for extended deployments.
Marine Housing
Stainless-steel construction with IP67 protection.
Flexible Installation
Supports mounting heights up to 50 m.
Overview
WaveSense-R is a non-contact wave-measurement system designed for continuous operation in harsh marine environments. It uses radar waves to measure the distance to the sea surface and applies real-time wave-processing algorithms to output characteristic wave and tide values.
Because the sensing element remains above the water surface, WaveSense-R is well suited to exposed fixed platforms, buoys, and coastal installations where reduced fouling and lower mechanical wear are important operational advantages.

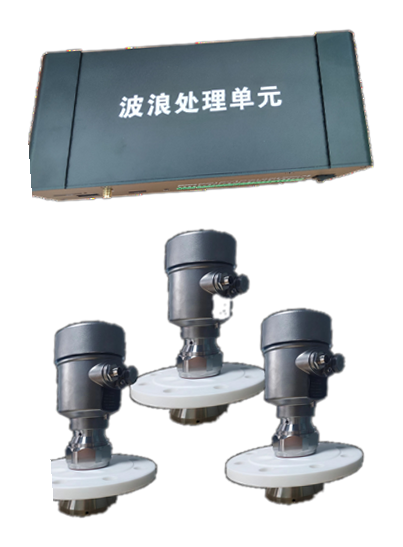

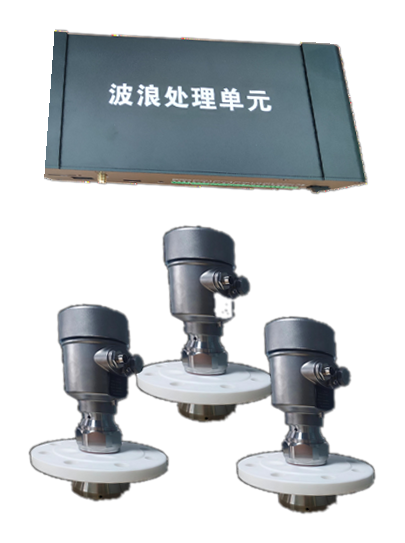

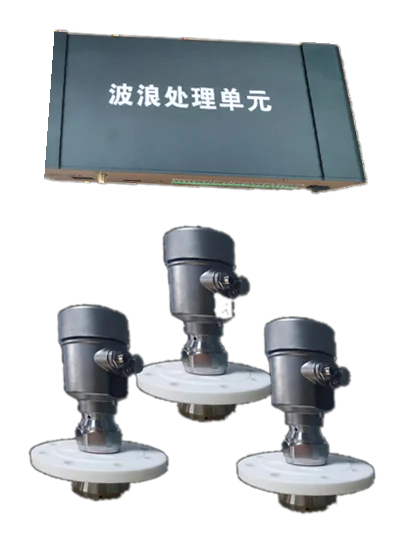

Product Views
Key Specifications
View Full SpecificationsMeasured Outputs & Interfaces
Wave Outputs
Sea Level Outputs
System Interfaces
Resources
Product Datasheet
Wave, tide, and installation performance data for project planning.
Request PDFIntegration Support
Support for logger, network, and platform integration.
Email SupportDeployment Consultation
Guidance on mounting height, platform geometry, and telemetry workflows.
Talk to an ExpertAccessories
Mounting Brackets
Support for fixed-platform, tower, and buoy-top installation.
Processing Unit Integration
Hardware support for signal processing and data forwarding.
Field Commissioning Service
Setup support for installation, alignment, and initial validation.
Support
Guidance for offshore, coastal, and platform-based radar wave deployments.
Integration support for serial and Ethernet telemetry workflows.
Recommendations for installation height, protection, and access planning.
Project support for research, forecasting, and operational met-ocean programs.
Need a non-contact wave and tide package?
We can help build the right radar-based observation system for your offshore, coastal, or research deployment.
Low-Maintenance Sensing
Non-contact radar reduces fouling and field exposure.
Met-Ocean Coverage
Combines wave and tide monitoring in one package.
Deployment Flexibility
Supports fixed platforms, buoys, and coastal stations.
Engineering Support
Backed by installation and integration guidance.
